DX03

INQUIRY

Portable Breathalyzer LED Digital Alcohol Tester Semiconductor Sensor Alcohol Analyzer Rechargeable Alcotest

Product Description


Description
DX03  is a patent private design breathalyzer,Type-c rechageable alcohol checker. High quality semiconductor sensor alcohol tester. Design with a breath monitoring probe module, which monitors the continuity of breathing sampling so that the test results can more accurately reflect the human blood alcohol content (BAC), digital LED display and with alarm indicator light, 4 units of measure mg/L,‰BAC,%BAC, g/L,which you can easily switch between them.

Product Parameters
Parameters
ItemSpecifications
SensorHigh quality Semiconductor Sensor
Bluetooth FunctionData transmitt via Bluetooth
RechargeableType-C recharging function
Response Time2-3 seconds
Blowing TimeAbout 5s
Product CertificatesCE/RoHS/FCC
Switchable Units‰BAC%BACmg/Lg/L
Test Range0.00~2.00‰BAC;0.000~0.200%BAC;0.000~1.000mg/L; 0.00~2.00g/L
Test Accuracy±0.008 at 0.050% BAC;>0.050% BAC: ±20%
Breath test monitoringBreathing interruption detection
DisplayDigital LED display
Memory Capacity50 test records be stored
Power Supply1000mAh polymer lithium battery
Optimal Operating Temperature0°C~50°C
Dimensions112*50*22mm
Net Weight82g
Packing Accessories5* mouthpieces /1* user manual /1* gift box/1*Type-C charging cable

Product features:

1.Key parameters such as sampling analysis, test accuracy and display range designed according to the EN 16280 standard, which drafted and officially adopted by the European Unionin the field of breath alcohol testing devices used by the general public in the year of 2012.

2.Using high accurate and sensitive semiconductor sensor, good performace and very reliable.
3.Designed with breath monitoring module, dynamically monitor the continuity of breath sampling, so that the test result will more accurately reflect      the Blood Alcohol Content (BAC) of human.

4.Units setting (2 software version for option):
  1)Version 1: mg/L, ‰BAC, %BAC, g/L,unites can be switched freely by user.
   2)Version 2: factory fix set the unit according to customer's requirement before shipment, end user cannot reset the unit.
5.Max memories: max 50 test records be stored.
6. Chargeable:Built with 1000mAh polymer lithium battery, with Type-C charging function.

7. Bluetooth Function: transmitt test data to mobile phone directly.

Application
Traffic Management,Bar, Family Gathering,Fleet Vehicle, factory, workshop, office, Hangover,Party,car, hotel, mine, etc.

Detailed Photos

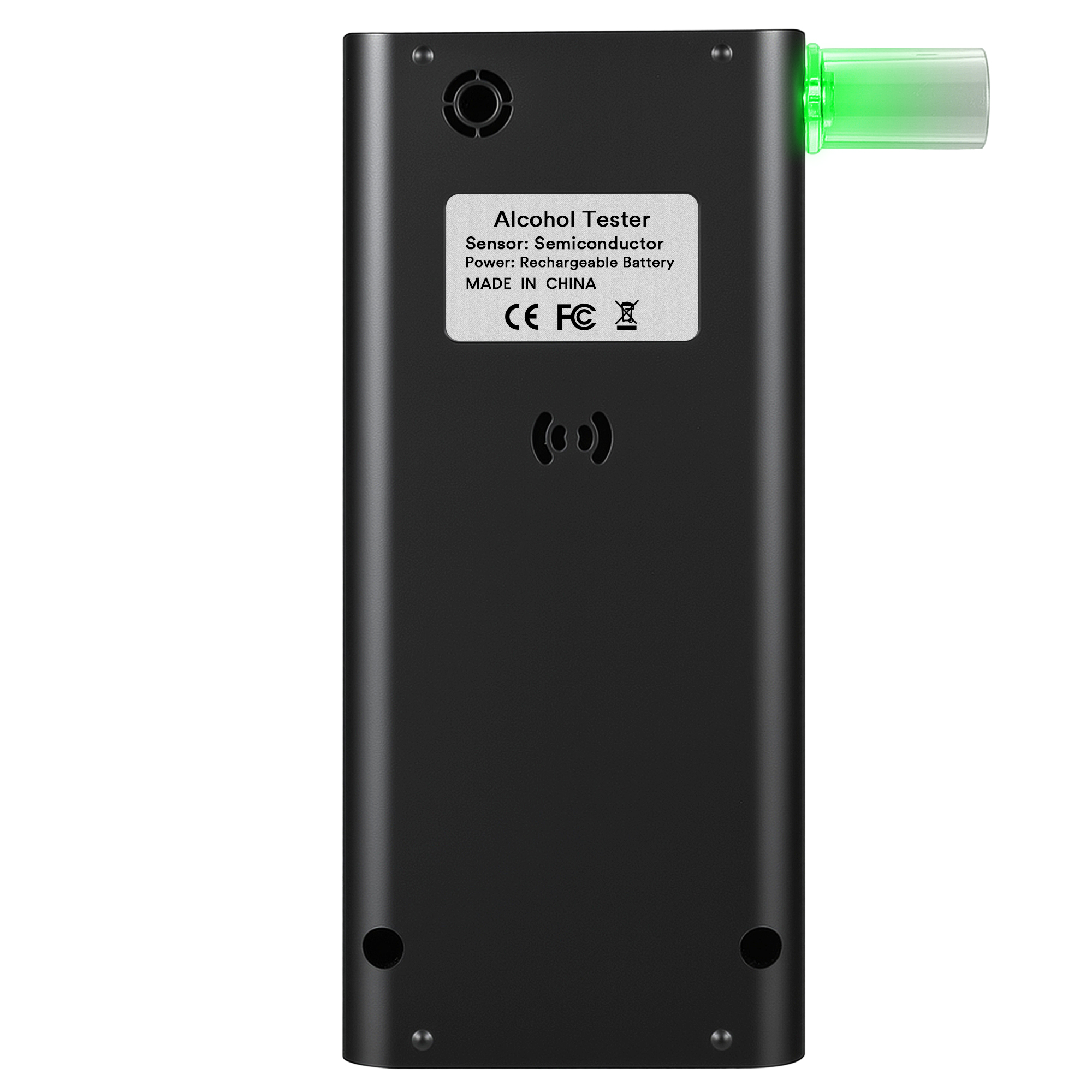

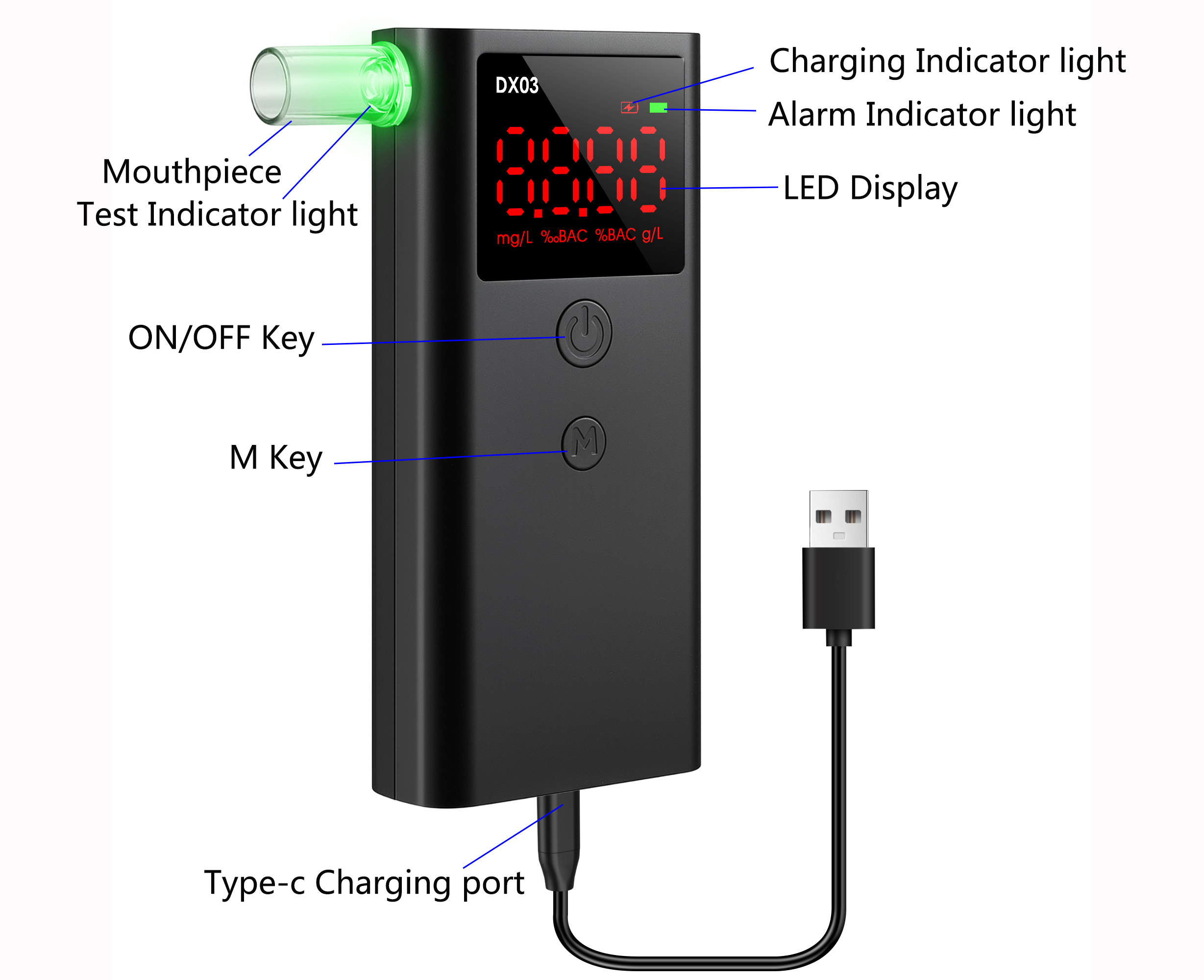

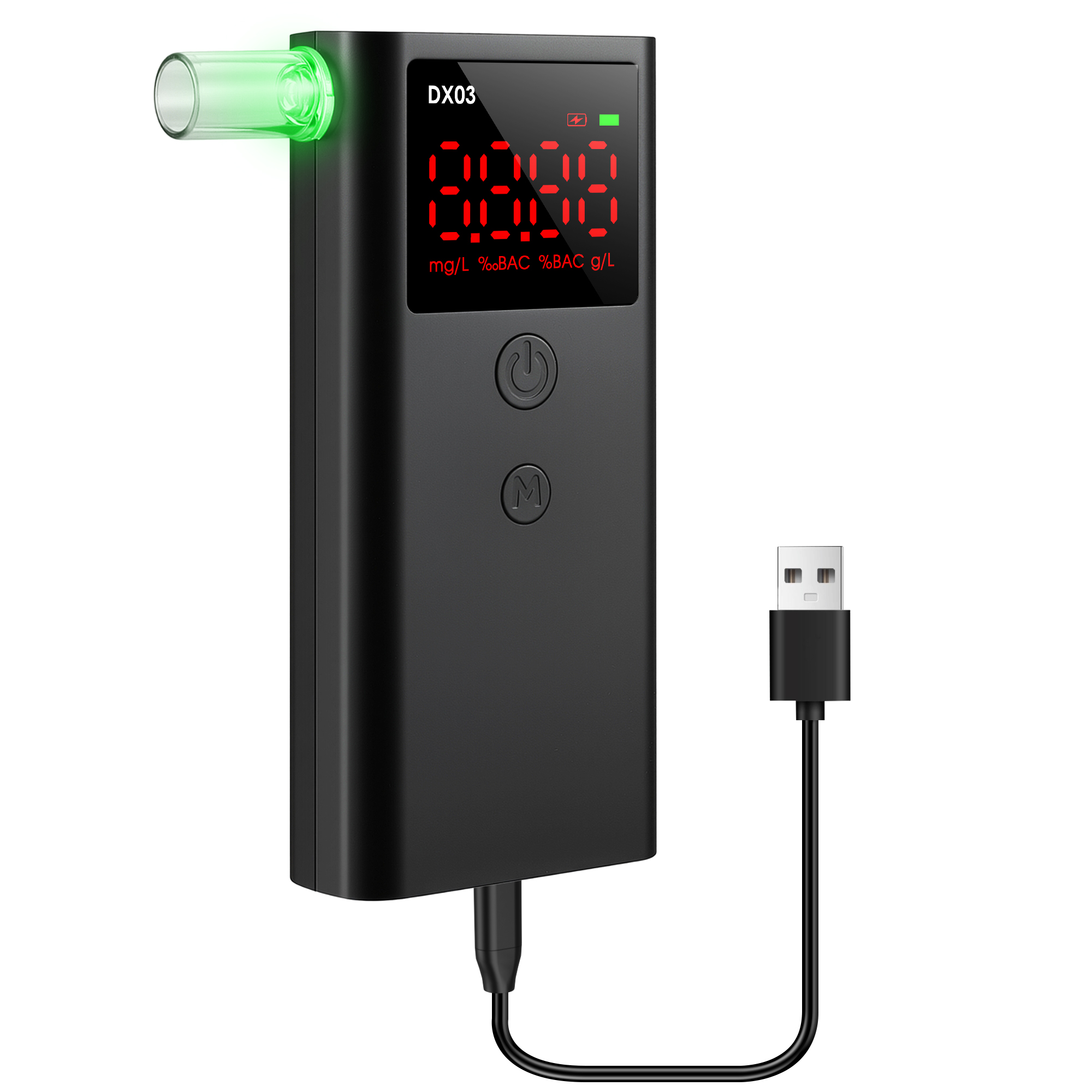

部件图 .jpg0.260mgL.jpg右侧全显示图 .jpg03 DX03 背面.jpgWarm Tips:

1.It takes certain amount of time for the alcohol in stomach to be absorbed into blood. To get a more accurate test result which can reflect the Blood       Alcohol Content well, please abstain from smoking and drinking (for at least 20 minutes) before test.
2.While doing breath sampling test, blowing cannot be interrupted (keep blowing about 5s). Blowing time is too short, the alcohol molecules in the           blood cannot spread to the lungs completely, then test results will have a big difference from the blood alcohol content.
3. Easy use new curve design breathalyzer, portable size, easy use. with digital LED display.
Application
application 5.jpg
Packing&Shipping

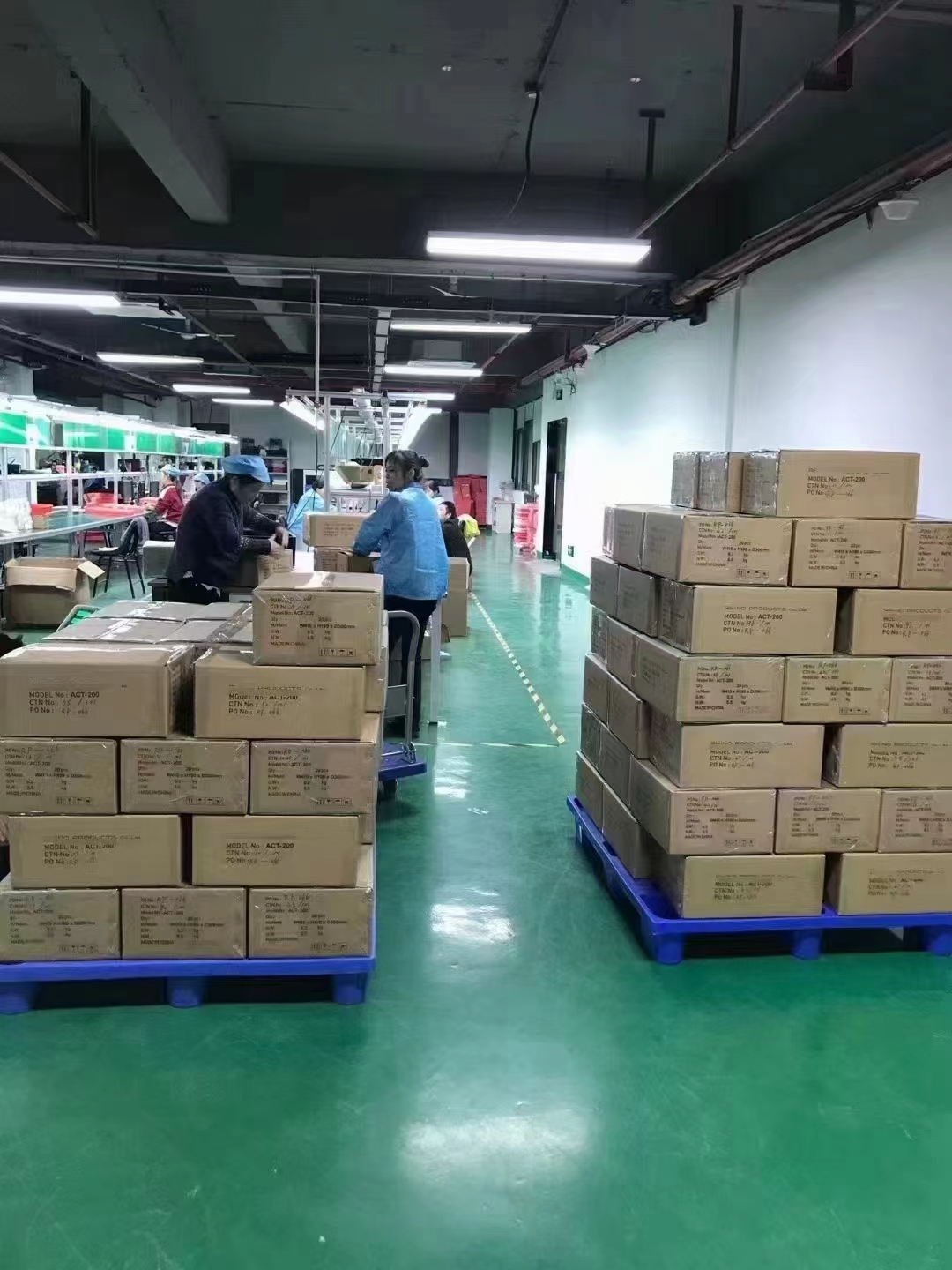

生产 产品打包.jpg

Selling Units:

Single item
Single package size:18cm*10cm*12 cm
Single gross weight:0.300 kg
Package Type:Unit N.W/Size: 192g/175*86*62mm
Inner Packing: gift box
Qty per Carton: 50pcs
Carton Meas: 45*32.2*36.7cm G.W/Carton:about 12.2kg
Company Profile

Changsha U De Toptech Electronic Technology Co.,Ltd is the original manufacturer for Alcohol Testers / Breathalyzers.

We provide one-stop services from I.D. Rendering to modeling, from computer conceptual design to working samples, from tester fabrication to production, from component to final packaging. We can help our customer meet specific needs of fast changing market and the global economic environments. Efficient resource&cooperate team spirit create the highest added value in our products and services. We promise to satisfy our customers' needs on OEM & ODM projects.

Our factory certified with ISO 9000-2015 and we are committed to bringing the most practical in use and of course the highest in quality to our customers and end user.

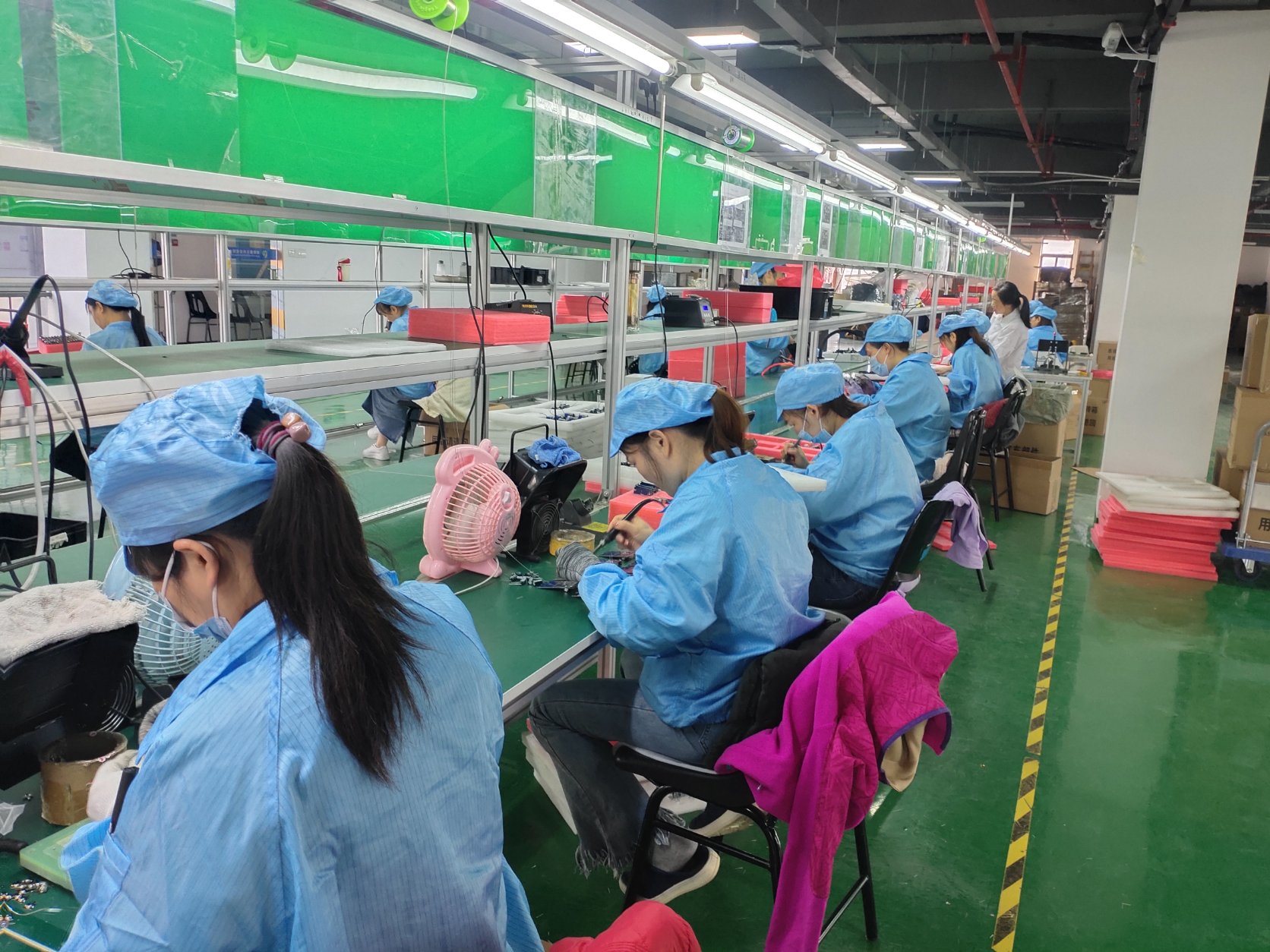

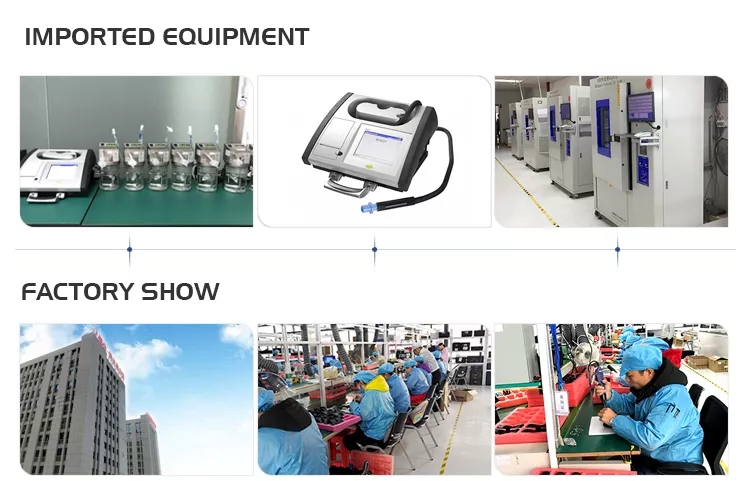

B7 生产线 1.jpgequipments.jpg

Our Advantages
  • Provide one-stop service from R&D, Production, marketing and after-sales service.
  • Accept OEM and ODM.
  • All our products certified with CE FDA RoHS and FCC, export to all over the world.
  • Help our customer meet specific needs of fast changing market and the global economic enviroments
  • Efficient resource & cooperate team spirit creat the highest added value in our products and service.

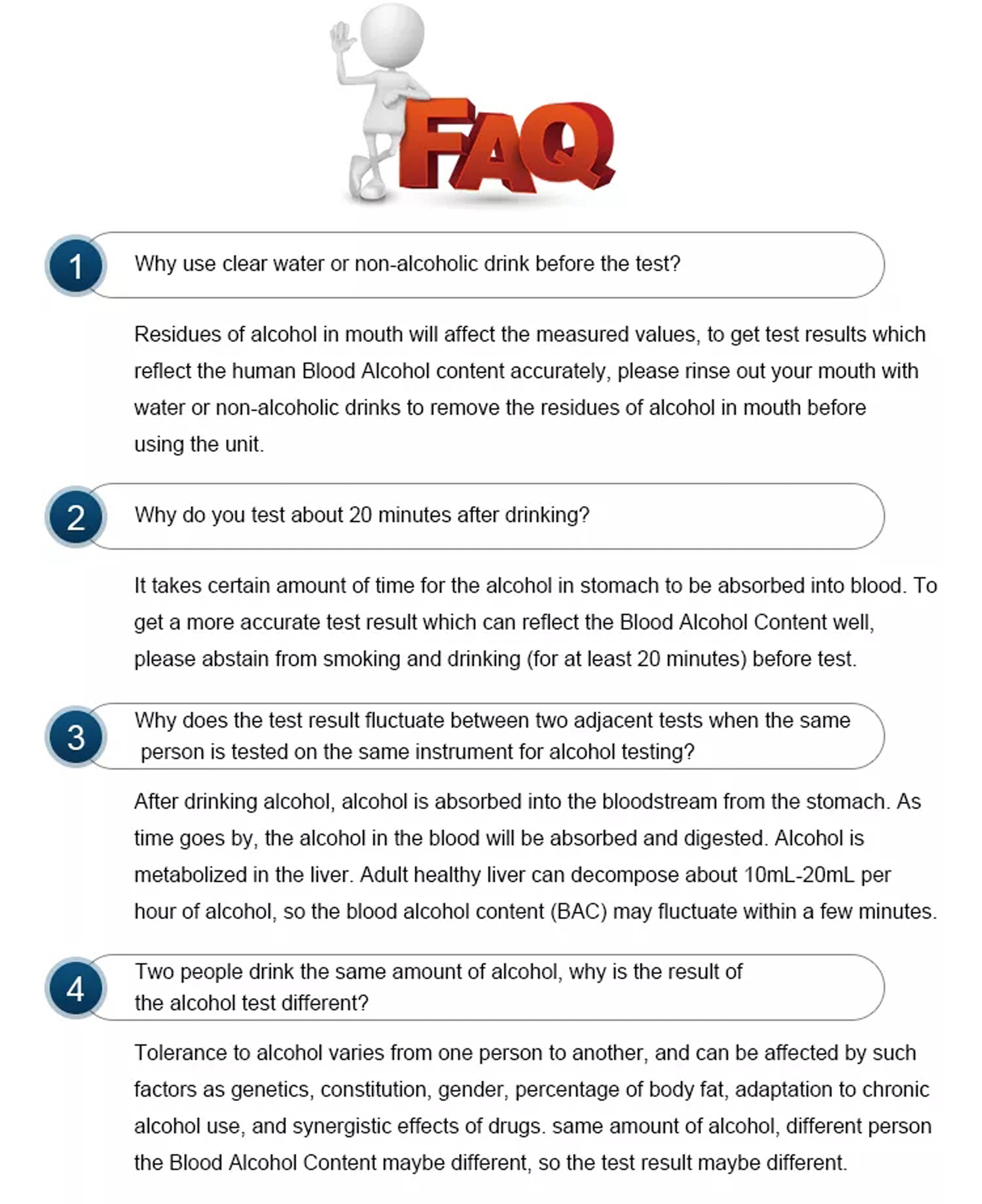

FAQ

Q1: Why do you choose our company?
A1: We are a professional manufacturer, We have seasoned engineers with 20 years' experience in alcohol tester products field. so we can offer products of the same quality at the best prices.

Q2: Can I have a sample order?
A2: The sample order to test are welcomed at the first time.

Q3: What certification do you have?
A3: CE, RoHS,FCC,FDA and etc.

Q4: How do I get price information?
A4: Sales representatives are responsible for providing detailed price information within 1 workday after get your inquiry.

Q5: If I order a large quantity, what's the best price?
A5: Please send the detailed enquiry to us, including item model number, quantity for each item, quality requirement, Logo and payment terms etc. We will make an accurate quotation to you at the earliest time.
